Simulation Results

---

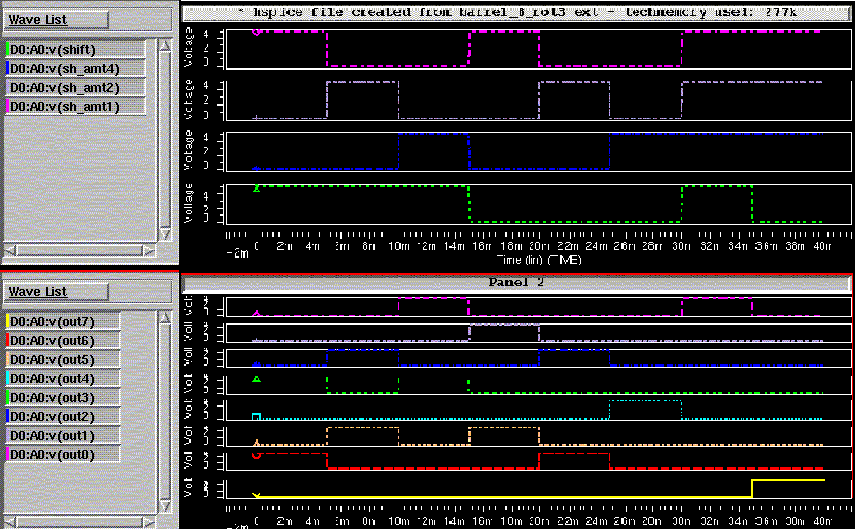

HSPICE simulation results for Logical Shifting   *Note*  For simulations only in7, in4, and in0 are set "high"

---

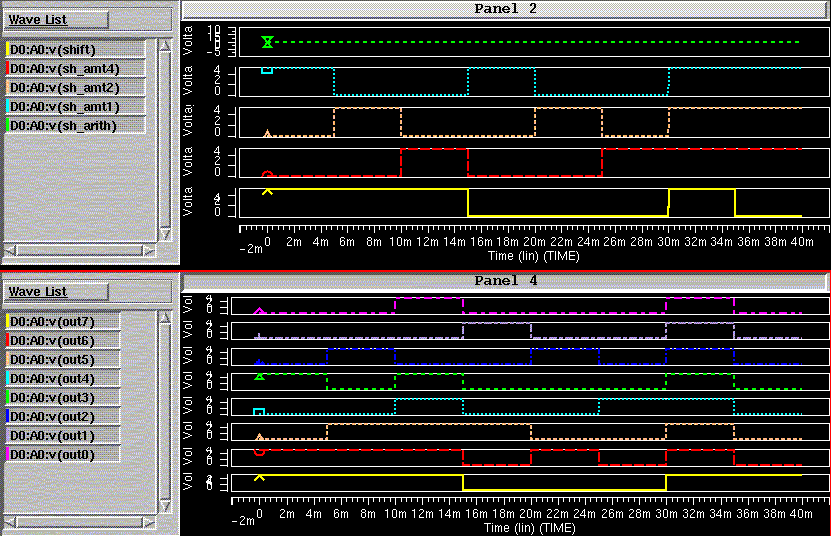

    HSPICE simulation results for Arithmetic Shifting   *Note*  For simulations only in7, in4, and in0 are set "high"

---

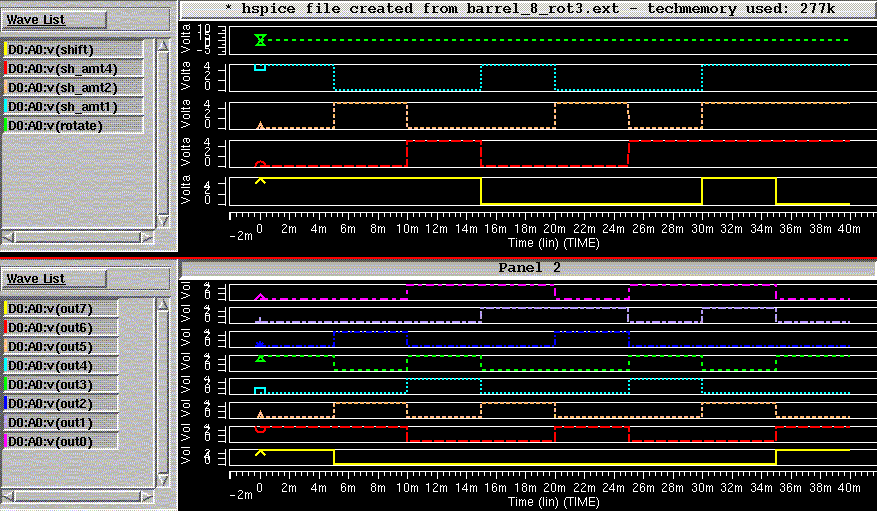

    HSPICE simulation results for Rotating    *Note*  For simulations only in7, in4, and in0 are set "high"

---
