Magic VLSI Layout Tool Version 7.3 *


Generate the technology manager GUI window.


Menu item Options->Technology manager implements the command techmanager.




The techmanager command generates the "technology manager" GUI window (see Figure 1 below). This window shows the current technology along with its version and description strings shows the internal grid scaling, the current and available CIF/GDS input and output styles, and the current and available extraction styles. It also shows the known technology files by searching the system search path (see the command path for more information). It allows a new technology to be loaded, or the CIF/GDS and extraction styles to be changed, as well as allowing internal grid rescaling by specifying the internal units per lambda.

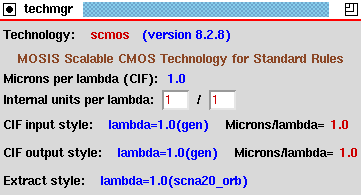

Figure 1. The technology manager GUI window.

Implementation Notes:

techmanager is implemented as a Tcl procedure in the "wrapper" script.
