Ele533 Assignment 10
Due Dec 6, 2005

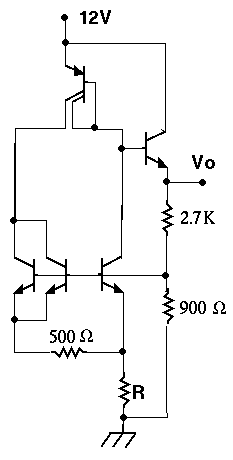

Figure   1
Bandgap Voltage sources
more
still more
1.   For the circuit shown in Figure 1;
What is the current through the resistor, R?
What value of R results in a bandgap voltage source?
What is the value of V
o
?
