Ele533 Assignment 9

For npn transistors	For pnp transistors
Is = 2E-16 Amps	Is = 4E-16 Amps
Vbe = 0.7 Volts	Vbe = 0.7 Volts
VAF = 125 Volts	VAF = 80 Volts
beta = 150	beta = 50

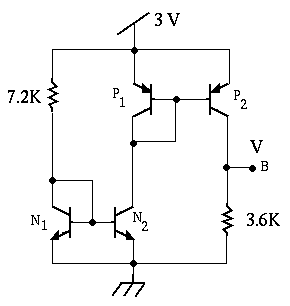

1. What is the voltage V_B in Figure 1.


                                   Figure 1.

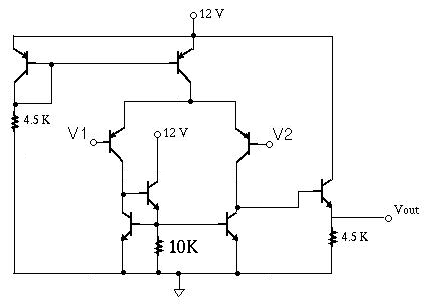

2. Consider the amplifier shown in Figure 2.
   1. What is the common mode input range?
   2. What is the input offset voltage?
   3. What is the input bias current?
   4. What is the voltage gain?
   5. Which input is the inverting input?


                                           Figure 2.
