- Add a buried layer and an epi layer as shown.
- Add LVS Text in one of the corners of the epi layer. Make sure the LVS text falls inside the epi layer boundary. Also, the LVS Text must be layer 95, and the 'V' must be a capital V.

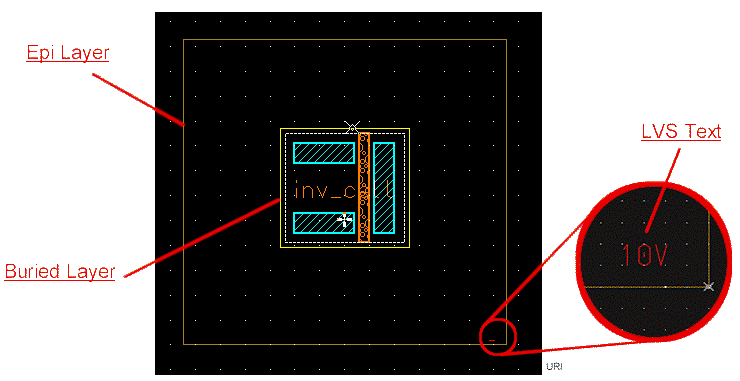

Completed LVS Cell
- Add a buried layer and an epi layer as shown.
- Add LVS Text in one of the corners of the epi layer. Make sure the LVS text falls inside the epi layer boundary. Also, the LVS Text must be layer 95, and the 'V' must be a capital V.
